36V 48V 52V 60V 72V 20AH PVC Lithium Battery Pack for 500W 750W 1000W 1500W 2000W motor【AU STOCK】
- Regular price
-
$260.00 - Regular price
-
- Sale price
-
$260.00
Couldn't load pickup availability

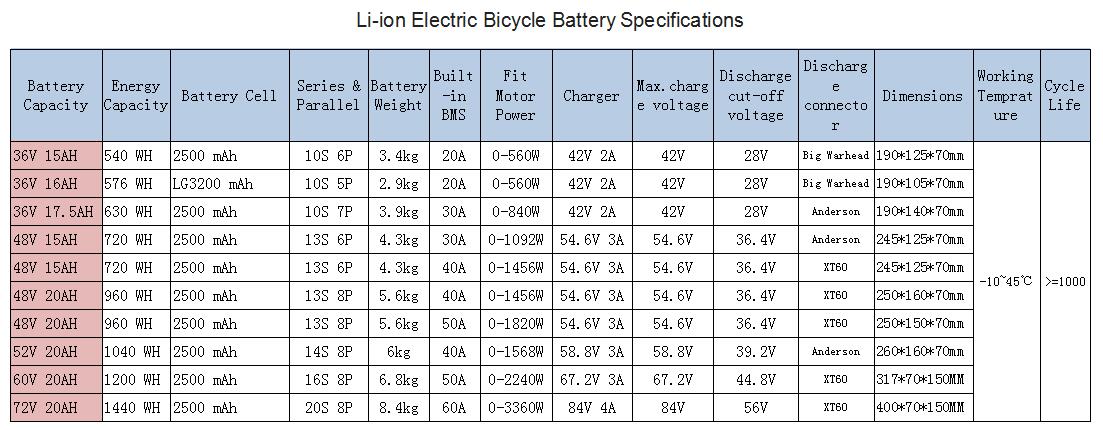

| Battery Parameter |
||||
| Battery Model |
D034 |
|||
| Battery Type |
Lithium Battery |
|||
| Rated Voltage |
48V | 52V | 60V | 72V |
| Rated Capacity |
20AH | 20AH | 20AH | 20AH |
| Battery Cell |
2600mah | 2600mah | 2600mah | 2600mah |
| Series-Parallel |
13S8P | 14S8P | 16S8P | 20S8P |
| Energy | 960Wh | 1040Wh | 1200Wh | 1440Wh |
| Battery Weight |
5.2kg | 5.6kg | 6.4kg | 8kg |
| Max. Constant Discharge Current |
50A | 45A/50A | 50A | 60A |
| Peak Discharge Current |
150A | 135A/150A | 150A | 180A |
| Max.Charge Current |
5A | 5A | 5A | 5A |
| Max.Charge Voltage |
54.6V | 58.8V | 67.2V | 84V |
| Discharge Cut-off Voltage |
36.4V | 39.2V | 44.8V | 56V |
| Cycles Life |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
| Charger |
54.6V 3A |
58.8V 3A |
67.2V 3A |
84V 4A |
| Discharge Connector |
XT60 | XT60 |
XT60 |
XT60 |
| Dimensions |
365*70*150mm | 283*70*150mm |
300*70*150mm |
400*70*150mm |
| IP Rating | 65 | 65 | 65 | 65 |
| Charger Temperature |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
| Discharge Temperature |
-10℃~60℃ |
-10℃~60℃ |
-10℃~60℃ |
-10℃~60℃ |
| BMS |
Overcharge, overdischarge and over-temperature protection |
|||
We use XT60 discharge connector by default, If need other discharge connector, Please remark it on your order.
Package list:
Ebike battery pack*1
Charger*1
Keys*2
User Manual*1
How to choose the battery Specifications that best suits you?
1.The voltage of the battery keep the same as the voltage of the motor.
2.The maximum power and maximum current (BMS) of the battery must be greater than or equal to the power and current of the motor and controller.
3.Please confirm that the dimensions of the battery are compatible with your frame before purchasing.
Guarantees
FAQs
Q: What type of this electric bike battery?
A: It is li ion battery, Chemical is Li(NiCoMn)O2.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -10 to 45°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
