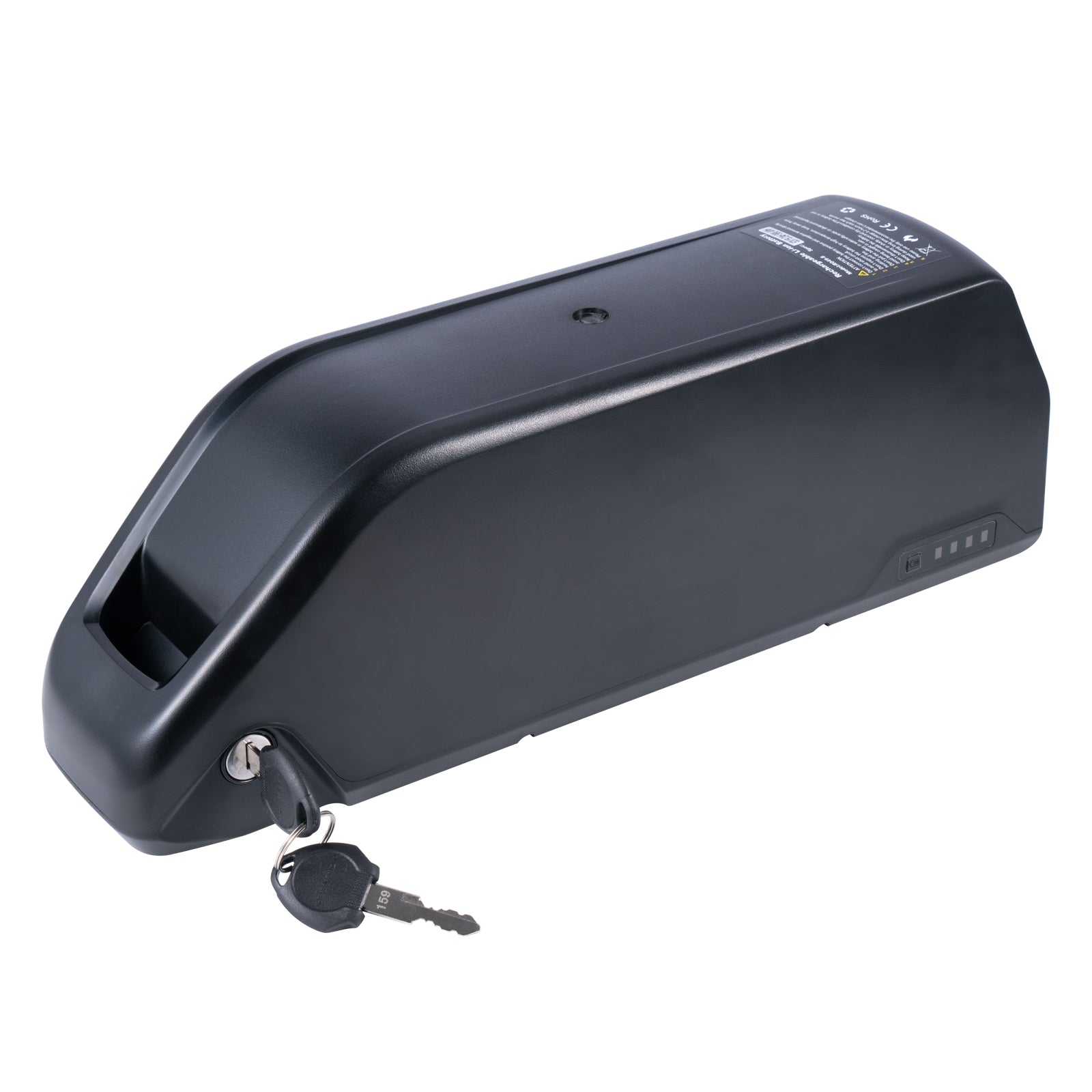

48V 52V 20Ah EBike Battery 21700 cells Polly DP-21700-5 Jumbo Shark Electric Bike Battery for 250W 350W 500W 750W 800W 1000W Watt motor【USA STOCK】
- Regular price
-
$280.00 - Regular price
-
- Sale price
-
$280.00
Couldn't load pickup availability
| Battery Parameter | ||
| Model | Effivolt-R049-8 | |
| Battery Type | Li ion Battery | |
| Rated Voltage | 48V | 52V |
| Rated Capacity | 20AH | 20AH |
| Battery Cell | 5000mah | 5000mah |
| Battery Weight | 4.8kg | 5.12kg |
| IP Rating | IP65 | IP65 |
| Max. Constant Discharge Current | 50A | 50A |
| Peak Current | 150A | 150A |
| Max.Charge Current | 5A | 5A |
| Max.Charge Voltage | 54.6V | 58.8V |
| Discharge Cut-off Voltage | 36.4V | 39.2V |
| Cycles Life | ≥1000 | ≥1000 |

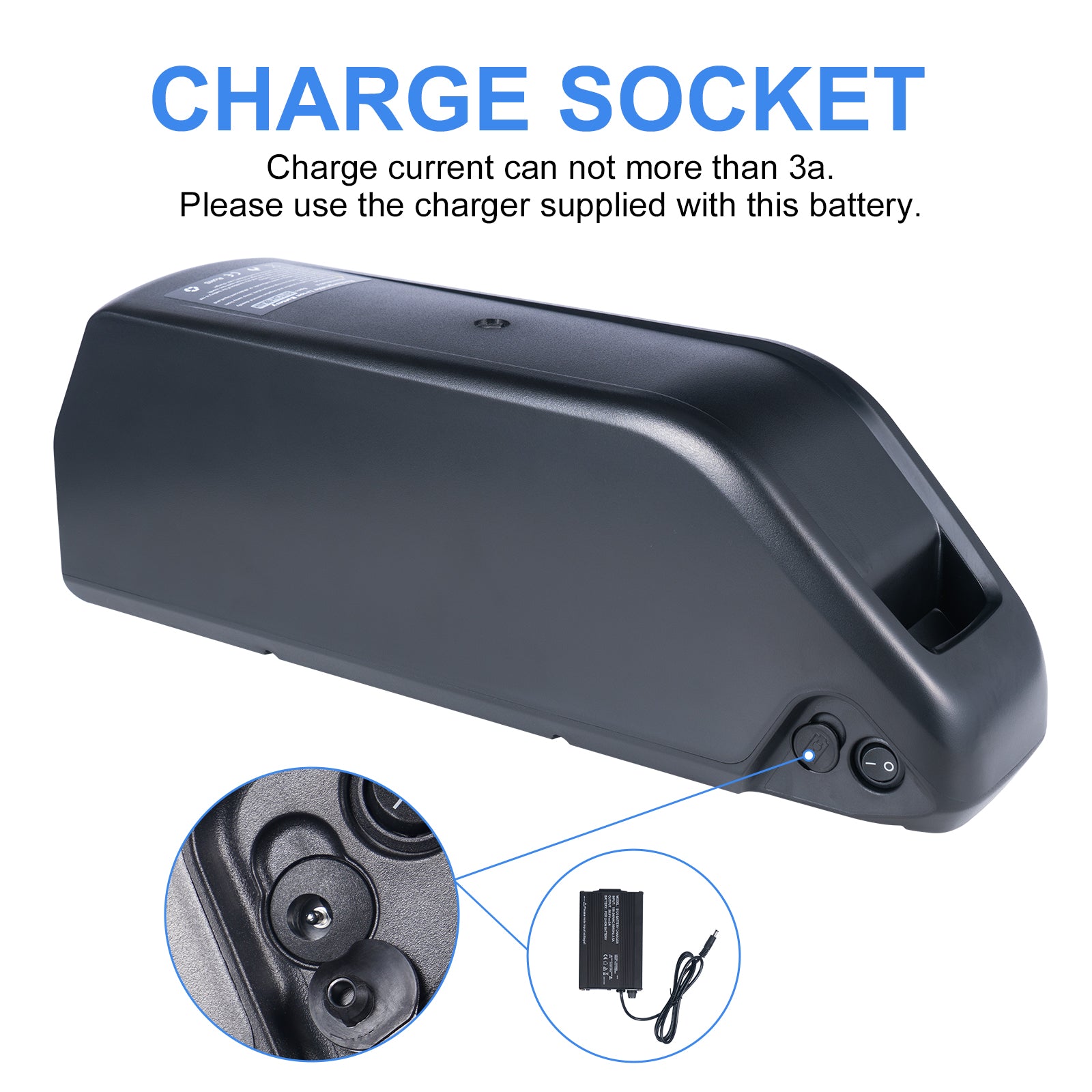

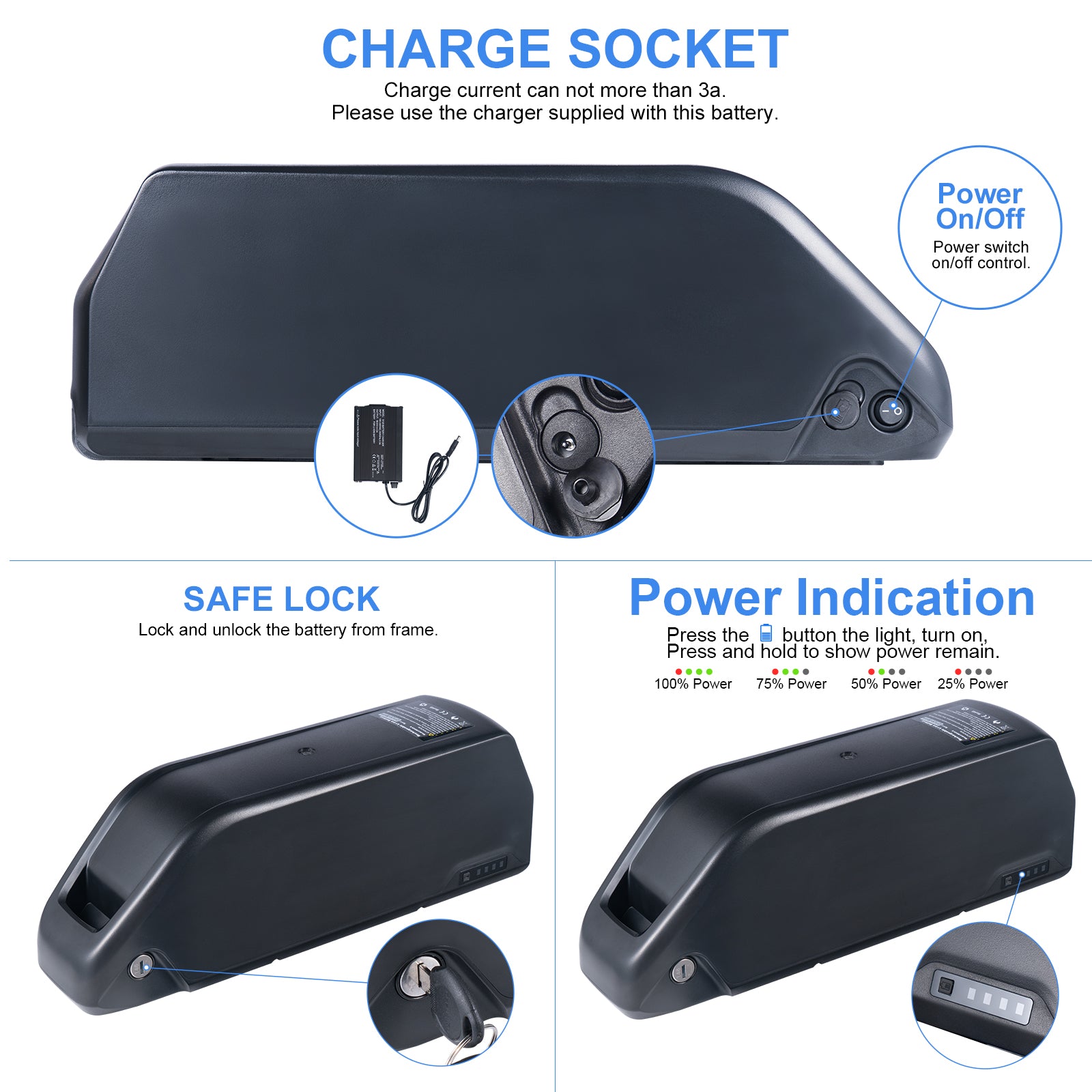

| Charger | 54.6V 3A | 58.8V 3A |

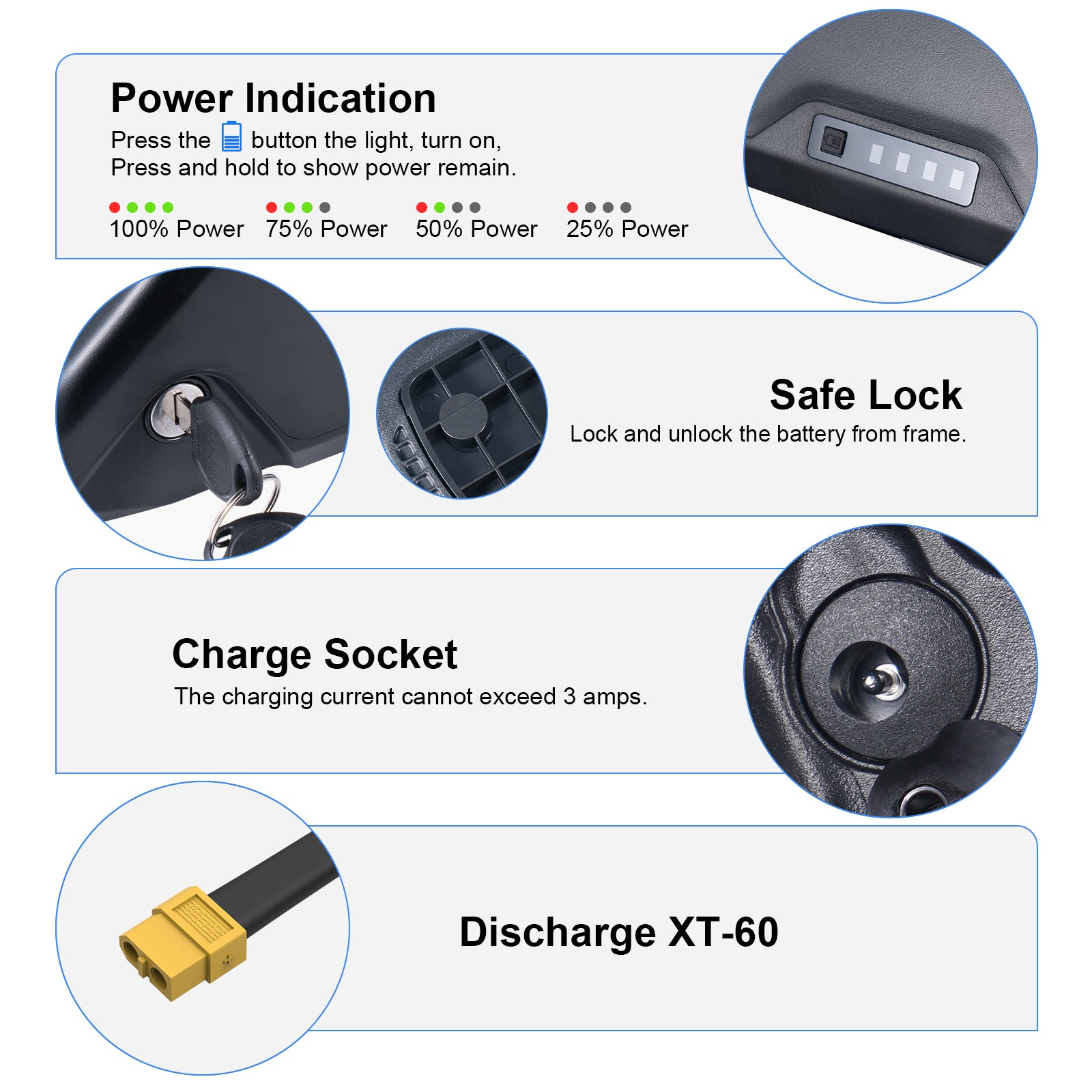

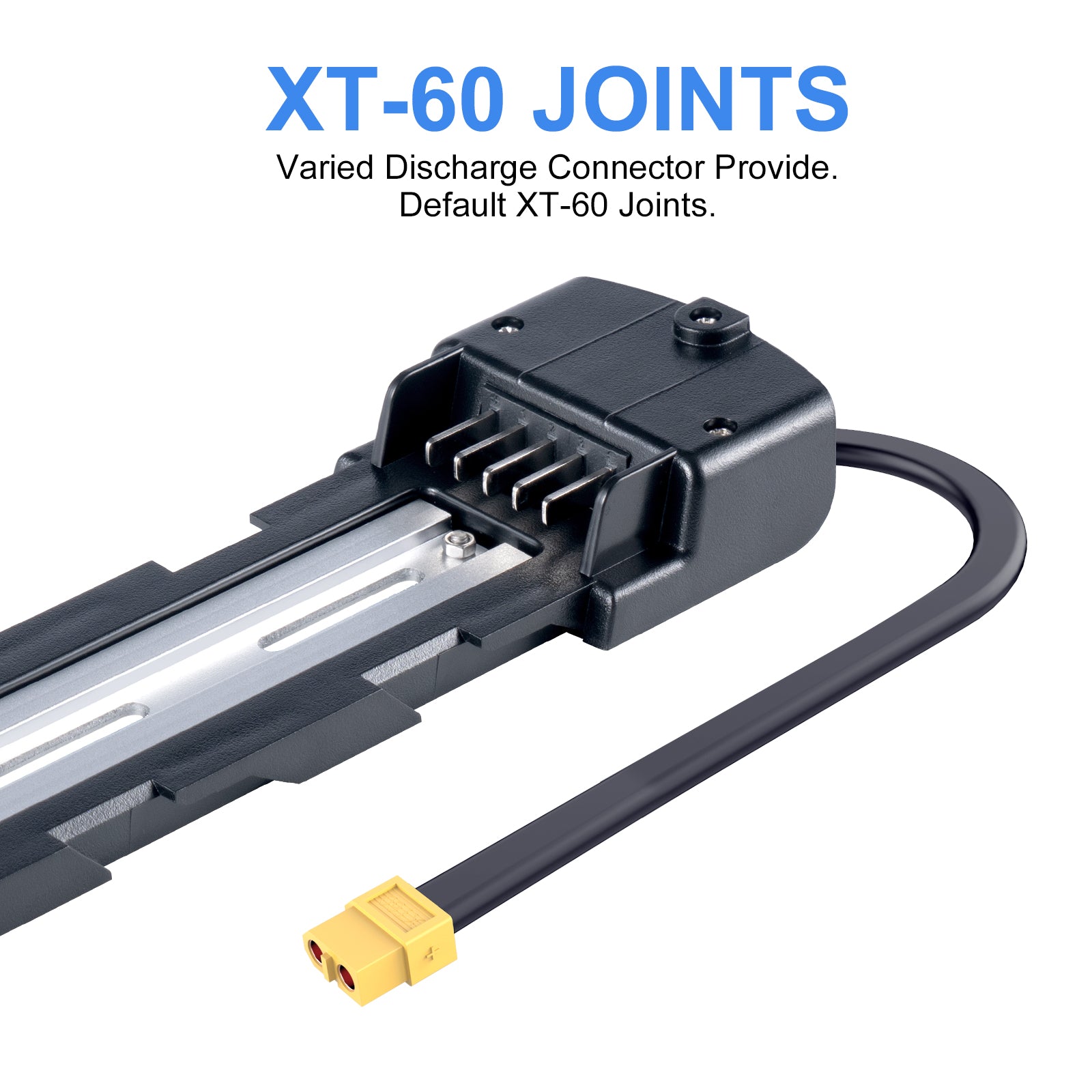

| Discharge Connector | XT60 | XT60 |
| Dimension | 368*95*125mm | 368*95*125mm |
| Fit Motor Power | 48V 0-1800W | 52V 0-1900W |
| Charger Temperature | 0~45℃ | 0~45℃ |
| Discharge Temperature | -10℃~60℃ | -10℃~60℃ |
| Mount base | 5PIN | 5PIN |

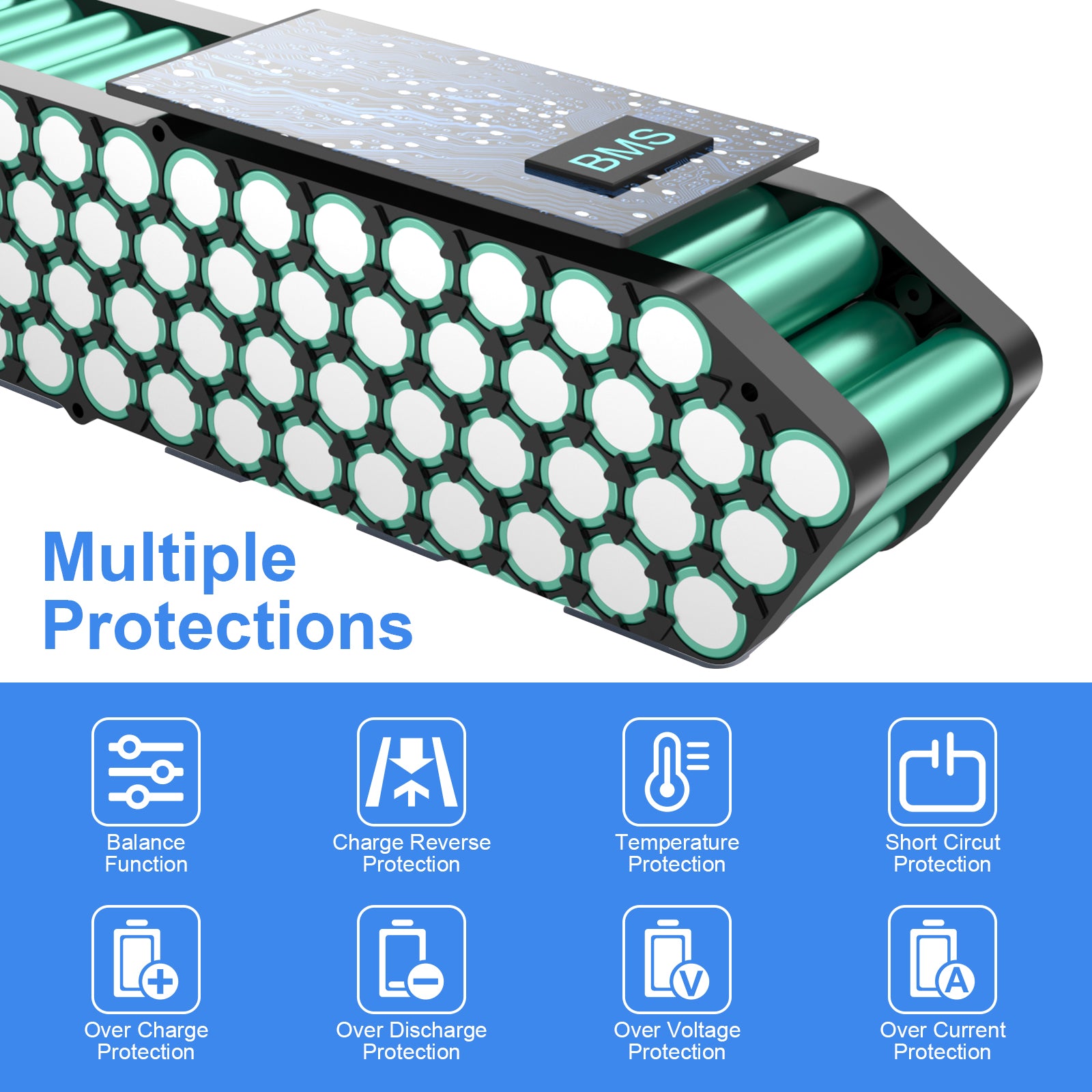

| BMS | Overcharge, overdischarge and over-temperature protection | |
If need other discharge connector, Please remark it on your order.

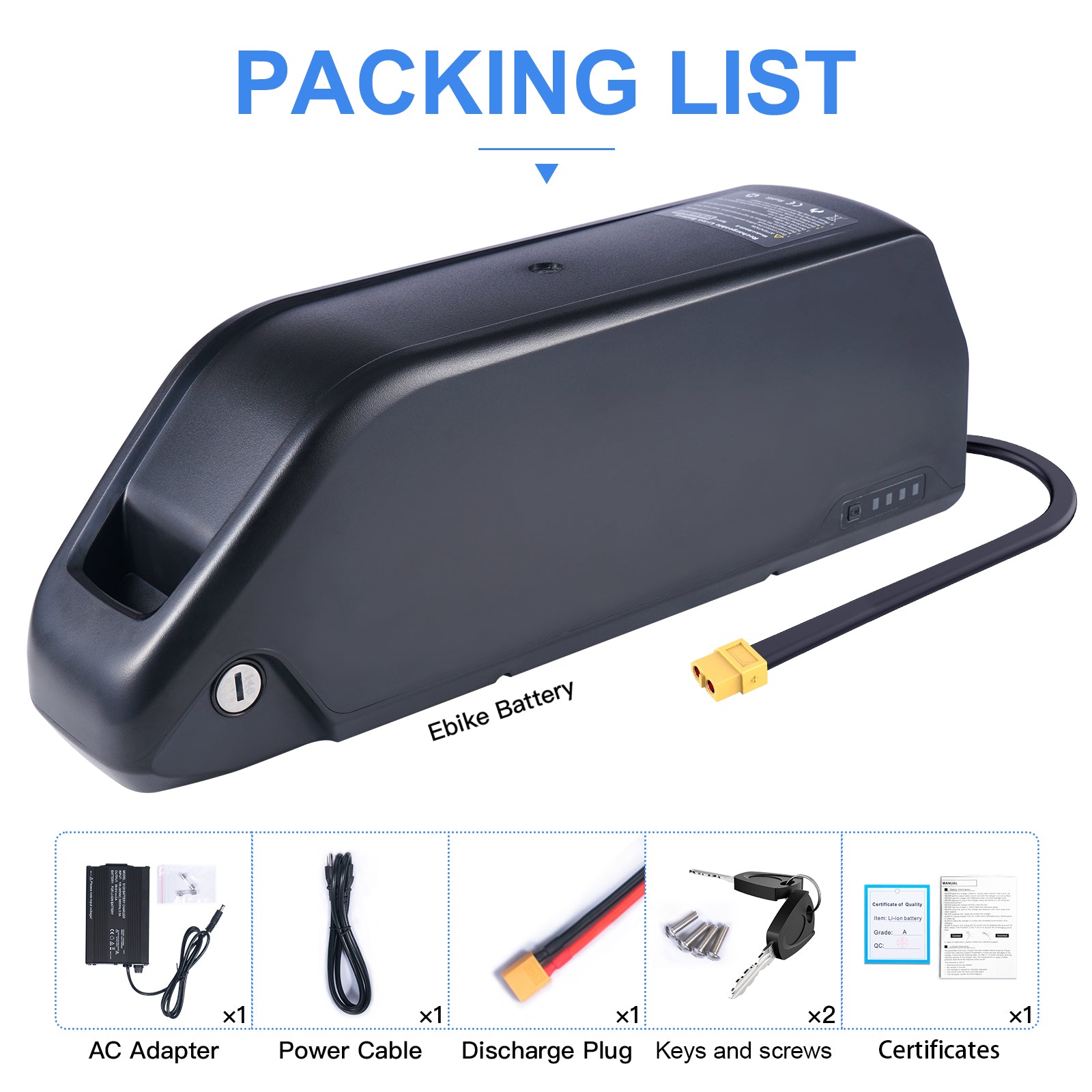

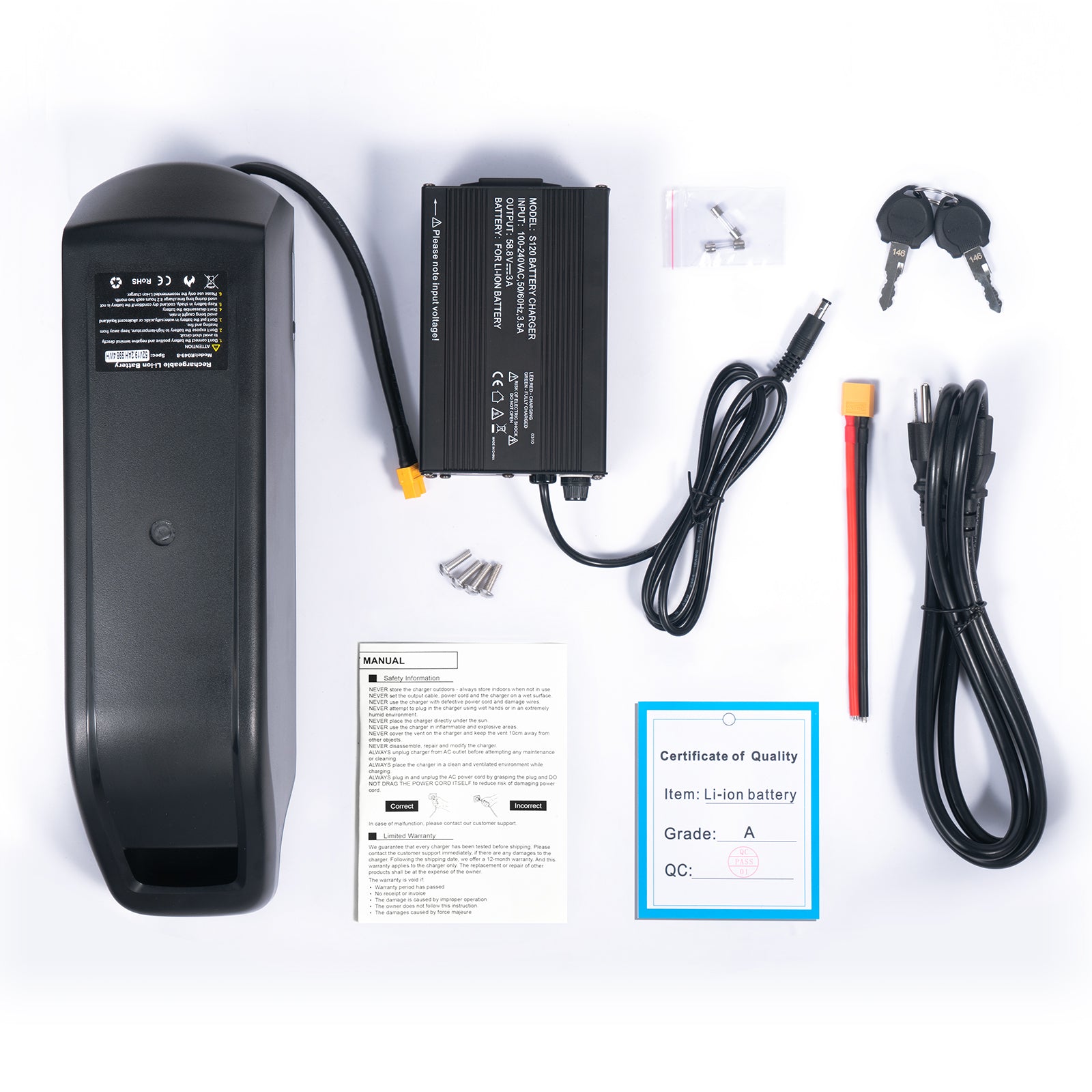

Package list:
Ebike battery pack*1
Charger*1

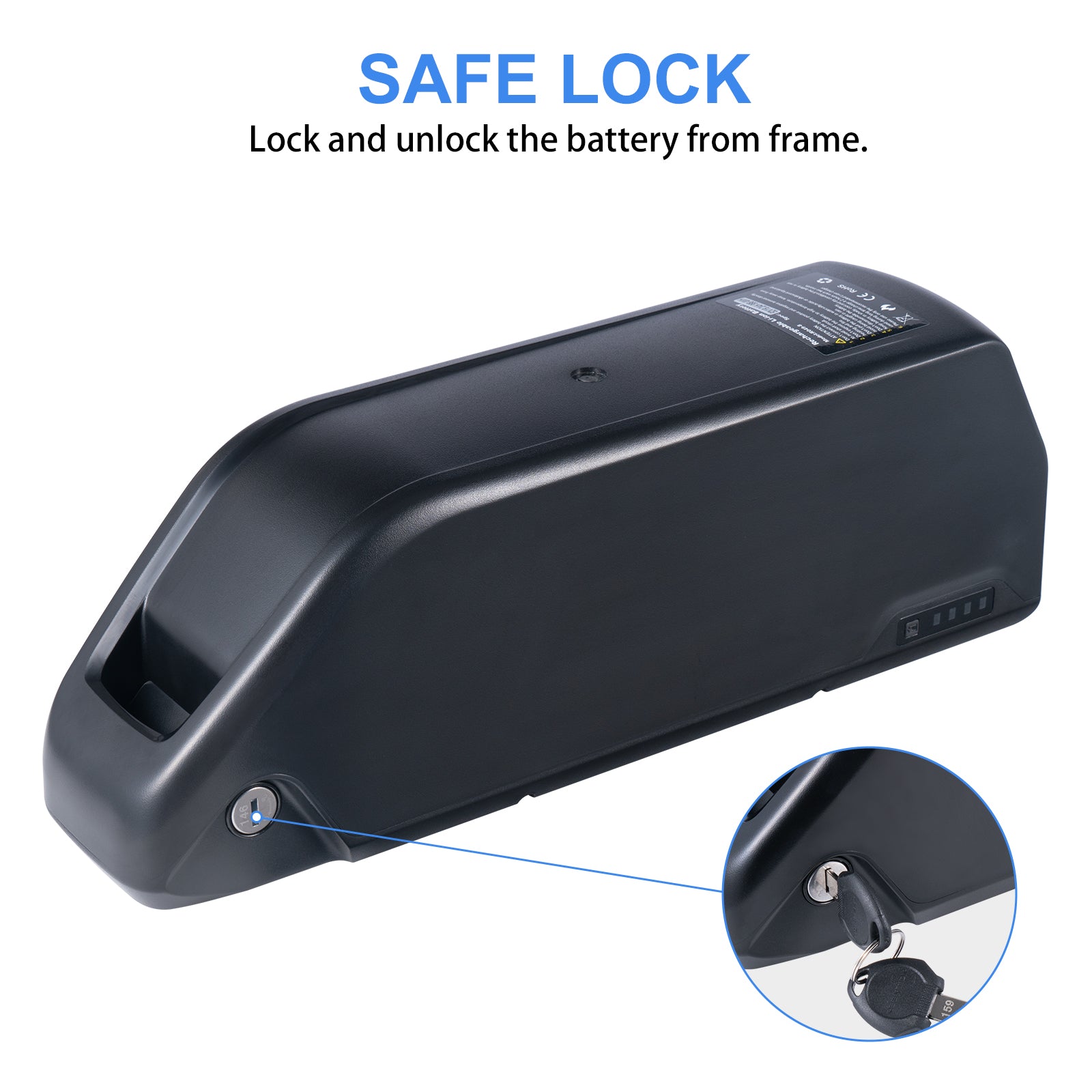

Keys*2
User Manual*1
How to choose the battery Specifications that best suits you?
1.The voltage of the battery keep the same as the voltage of the motor.
2.The maximum power and maximum current (BMS) of the battery must be greater than or equal to the power and current of the motor and controller.

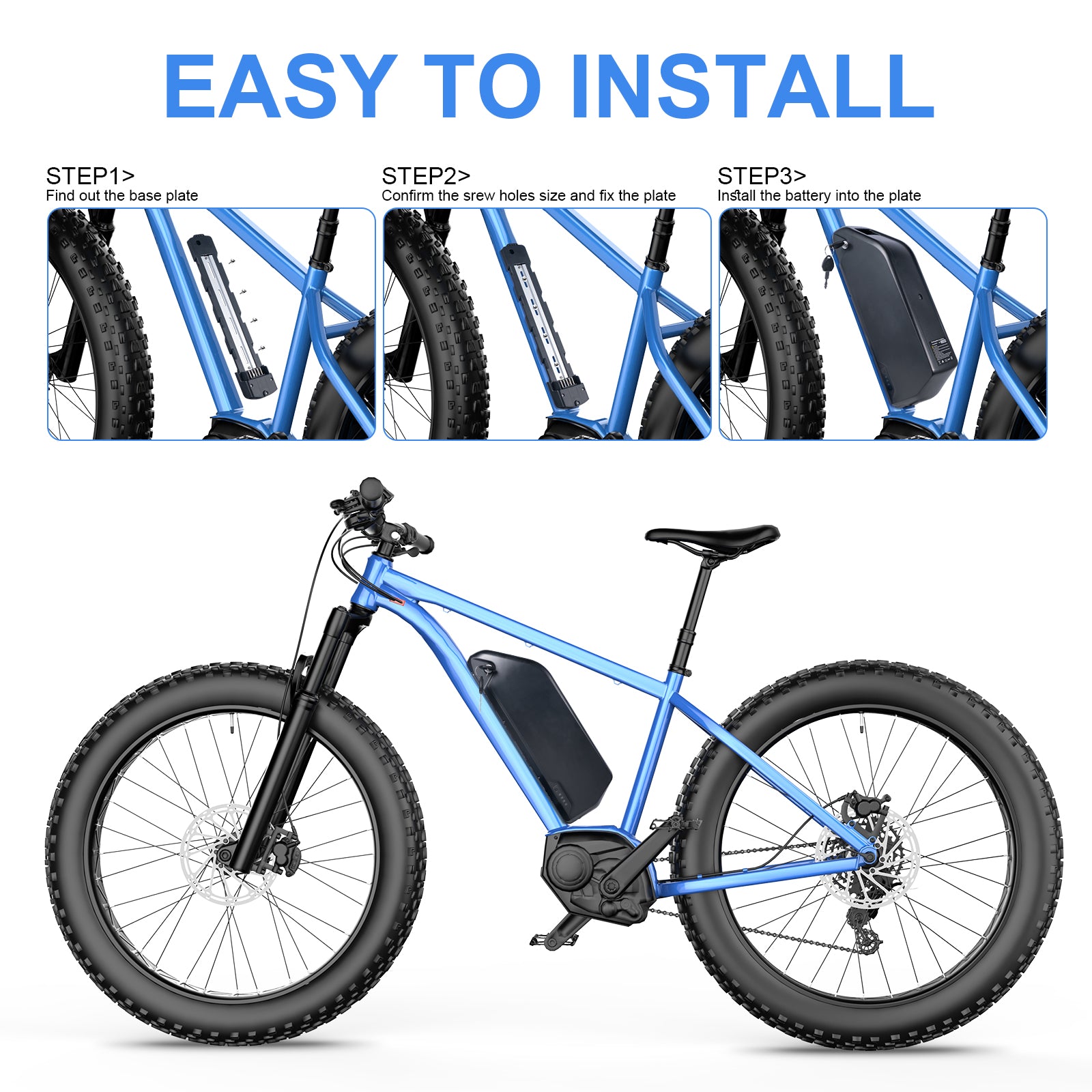

3.Please confirm that the dimensions of the battery are compatible with your frame before purchasing.
Guarantees
FAQs
Q: What type of this electric bike battery?
A: It is li ion battery, Chemical is Li(NiCoMn)O2.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -10 to 45°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
