Polly DP-21700-5 Jumbo Shark R049-8 36V 48V 52V 20Ah 25Ah Large capacity Electric Bike Battery for 36volt 250W 350W 500W motor【EU STOCK】
- Regular price
-
$252.00 - Regular price
-
- Sale price
-
$252.00
Couldn't load pickup availability
| Battery Parameter | |||
| Model | Effivolt-R049-8 | ||
| Battery Type | Li ion Battery | ||
| Rated Voltage | 36V | 48V | 52V |
| Rated Capacity | 25Ah | 20AH | 20AH |
| Battery Cell | 5000mAh | 5000mAh | 5000mAh |
| Watt Hour | 900WH | 960WH | 1040WH |
| Series&Parallel | 10S5P | 13S4P | 14S4P |

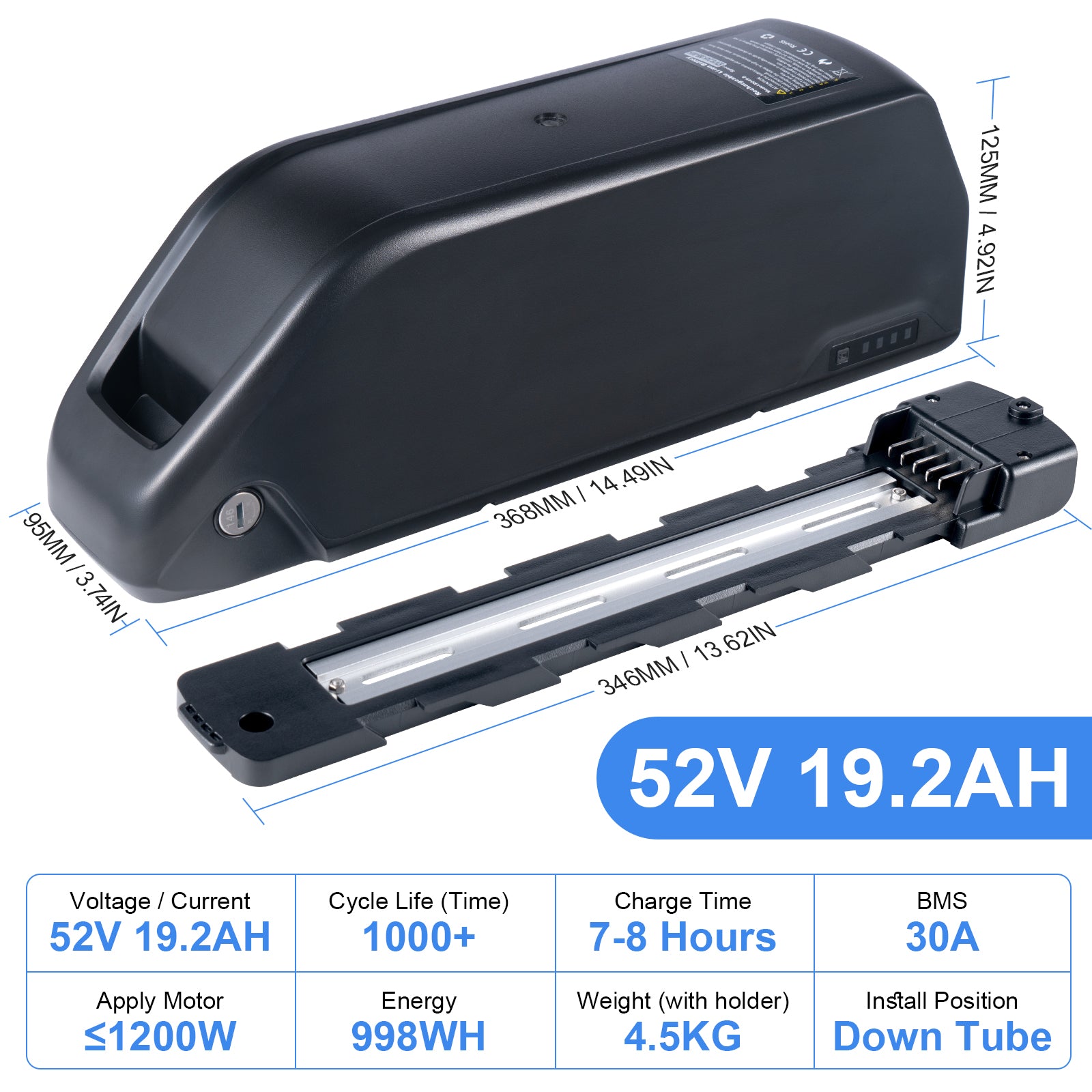

| Dimension | 368*95*125mm | 368*95*125mm | 368*95*125mm |
| Battery Weight | 4.9KG | 5KG | 5.22KG |
| Max. Constant Discharge Current | 20/25A | 50A | 50A |
| Peak Discharge Current | 60A/75A | 150A | 150A |
| Max.Charge Current | 3A | 3A | 3A |
| Max.Charge Voltage | 42V | 54.6V | 58.8V |
| Discharge Cut-off Voltage | 28V | 36.4V | 39.2V |
| Cycles Life | ≥1000 | ≥1000 | ≥1000 |
| Charger | 42v 3A | 54.6V 3A | 58.8V 3A |

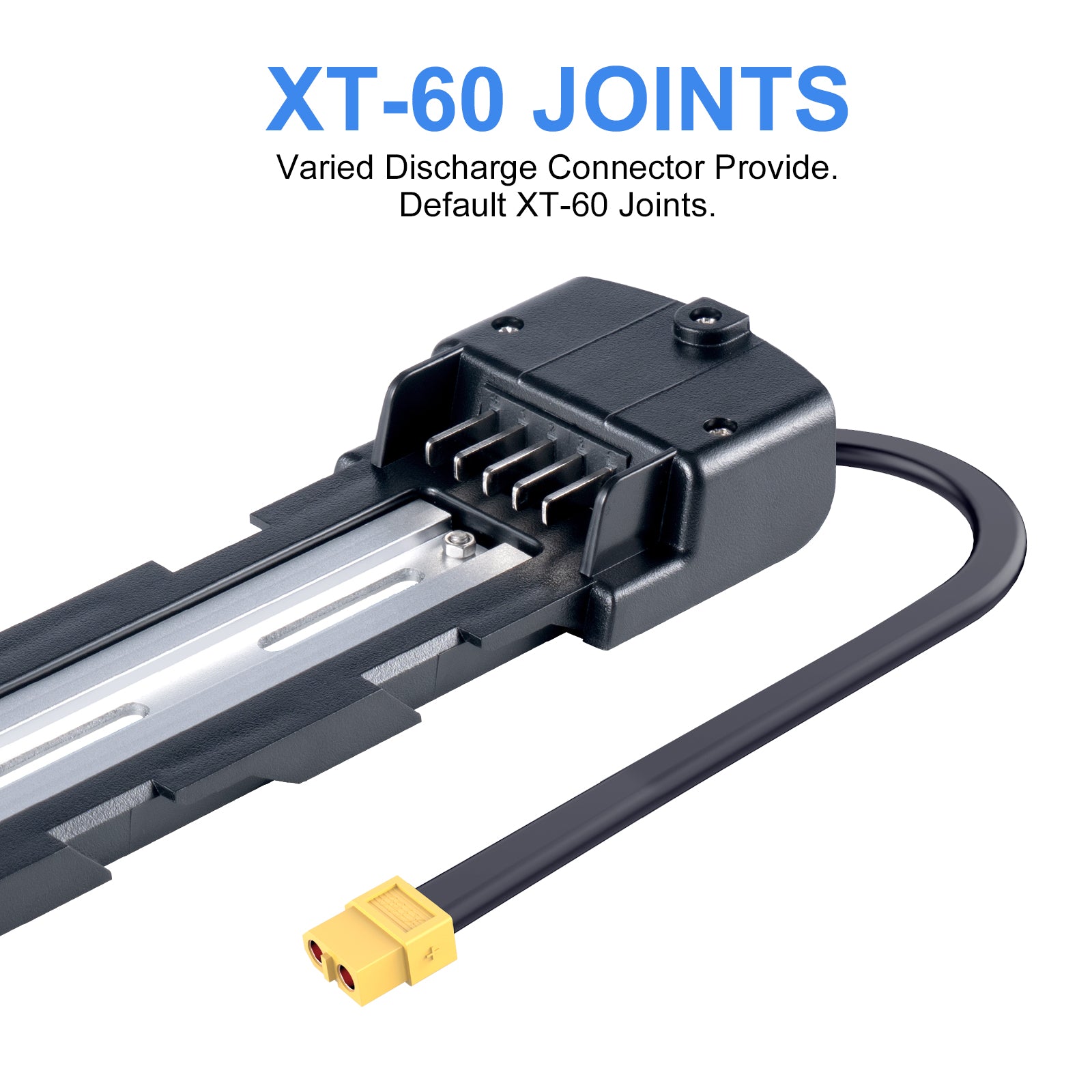

| Dischage Connector | Big warhead/XT60 | XT60 | XT60 |
| Fit For Power | 500W/750W | 0-1500W | 0-1900W |
| IP Rating | IP65 | IP65 | IP65 |
| Charger Temperature | 0~45℃ | 0~45℃ | 0~45℃ |
| Discharge Temperature | -10℃~60℃ | -10℃~60℃ | -10℃~60℃ |

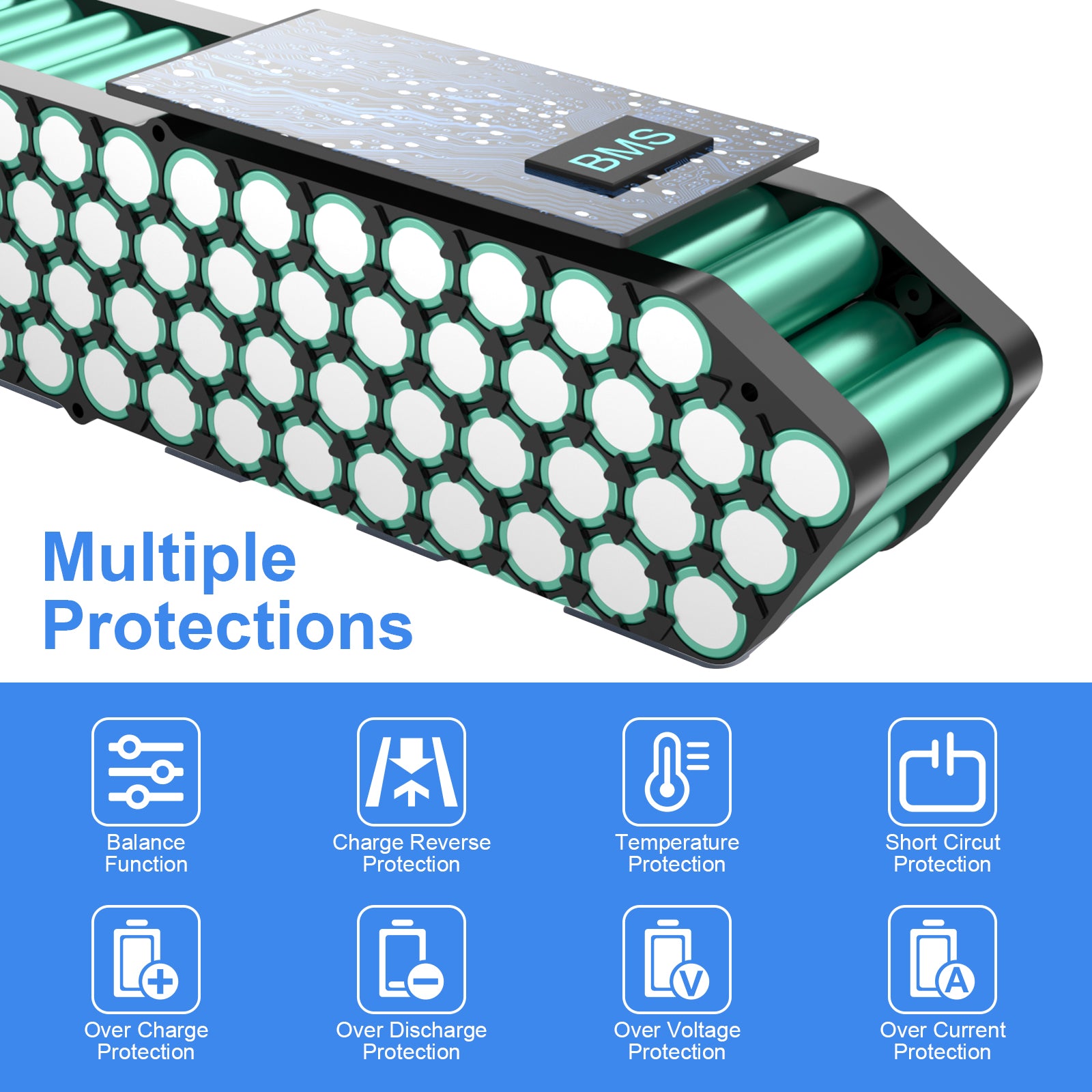

| BMS | Overcharge, overdischarge and over-temperature protection | ||
If need other discharge connector, Please remark it on your order.

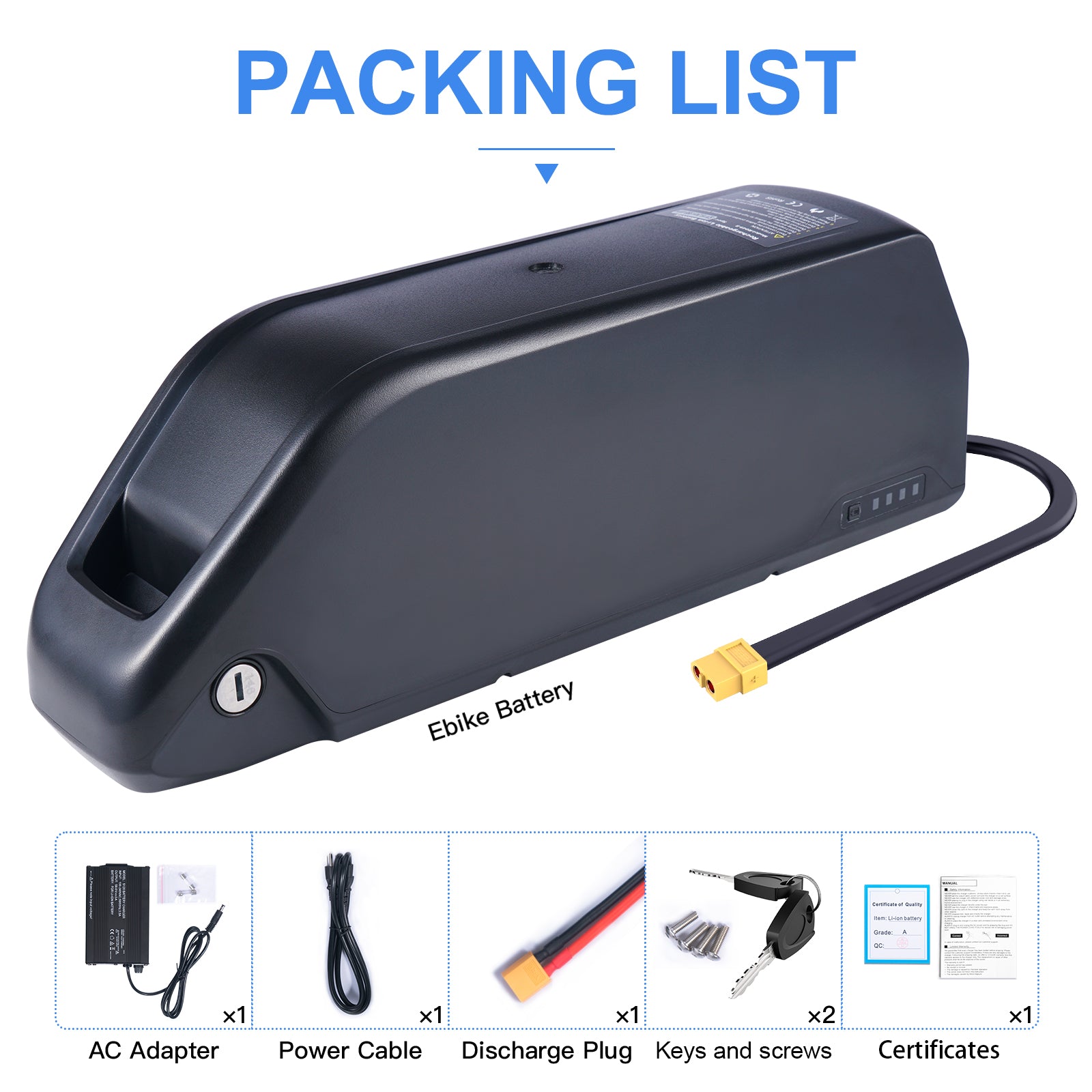

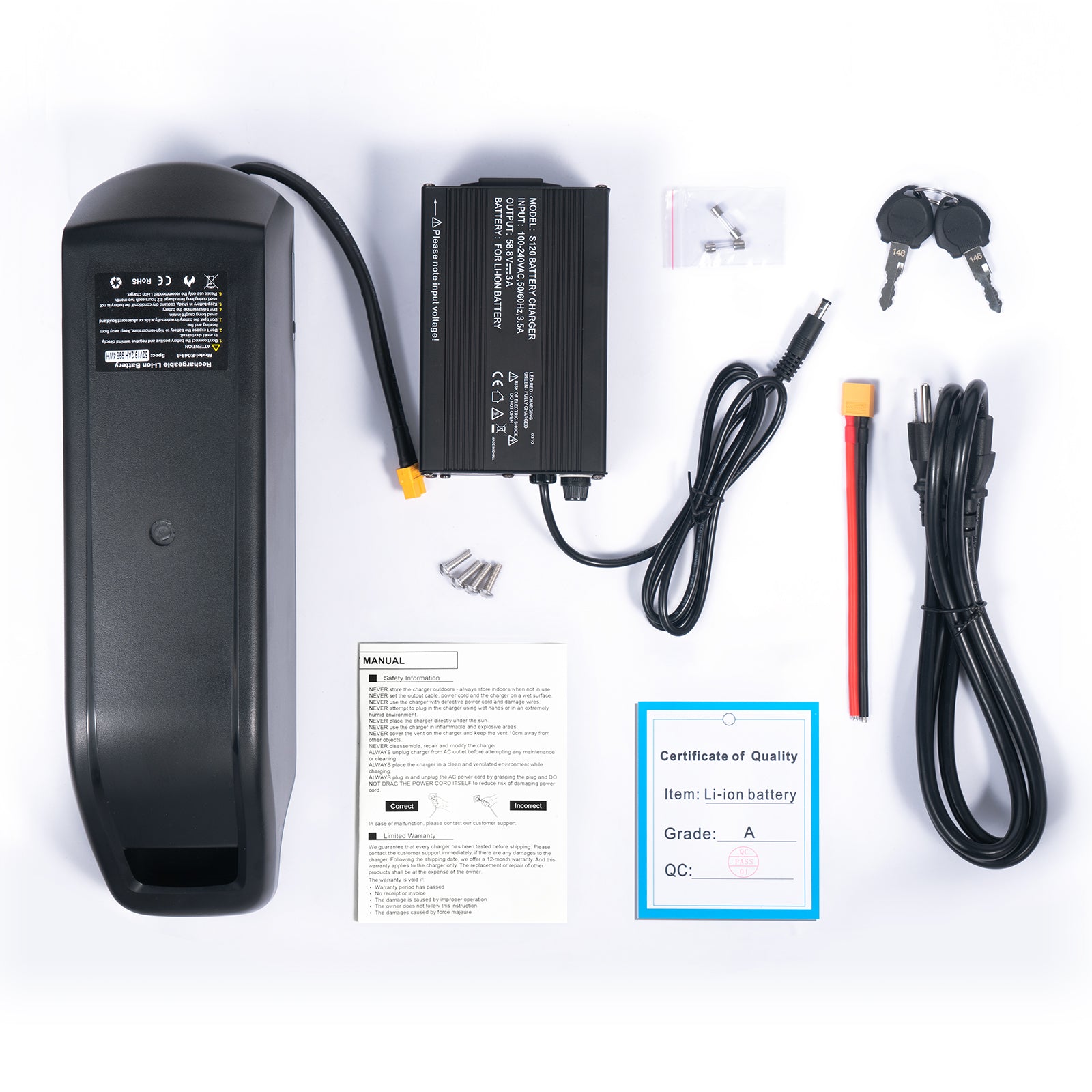

Package list:
Ebike battery pack*1
Charger*1

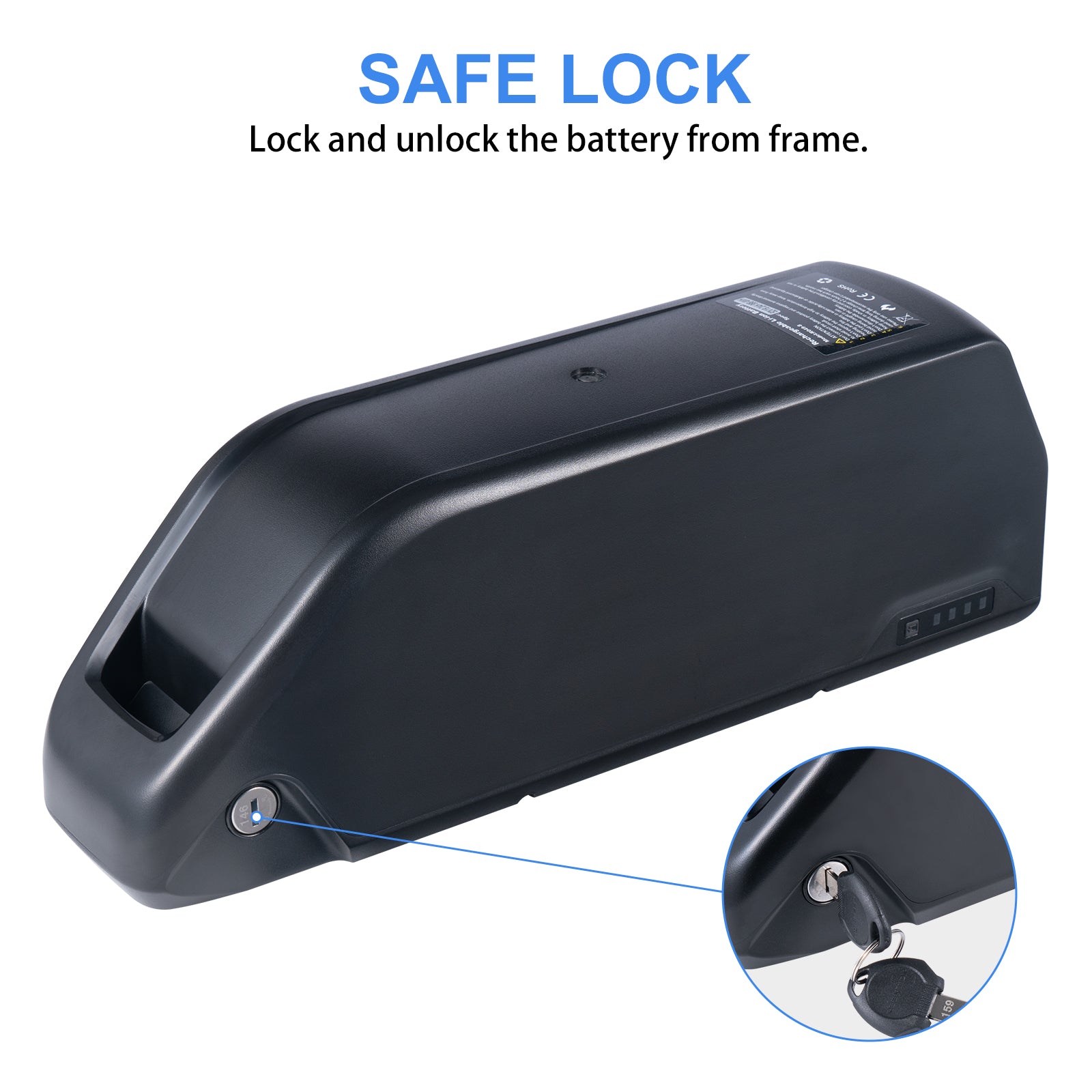

Keys*2
User Manual*1
How to choose the battery Specifications that best suits you?
1.The voltage of the battery keep the same as the voltage of the motor.
2.The maximum power and maximum current (BMS) of the battery must be greater than or equal to the power and current of the motor and controller.

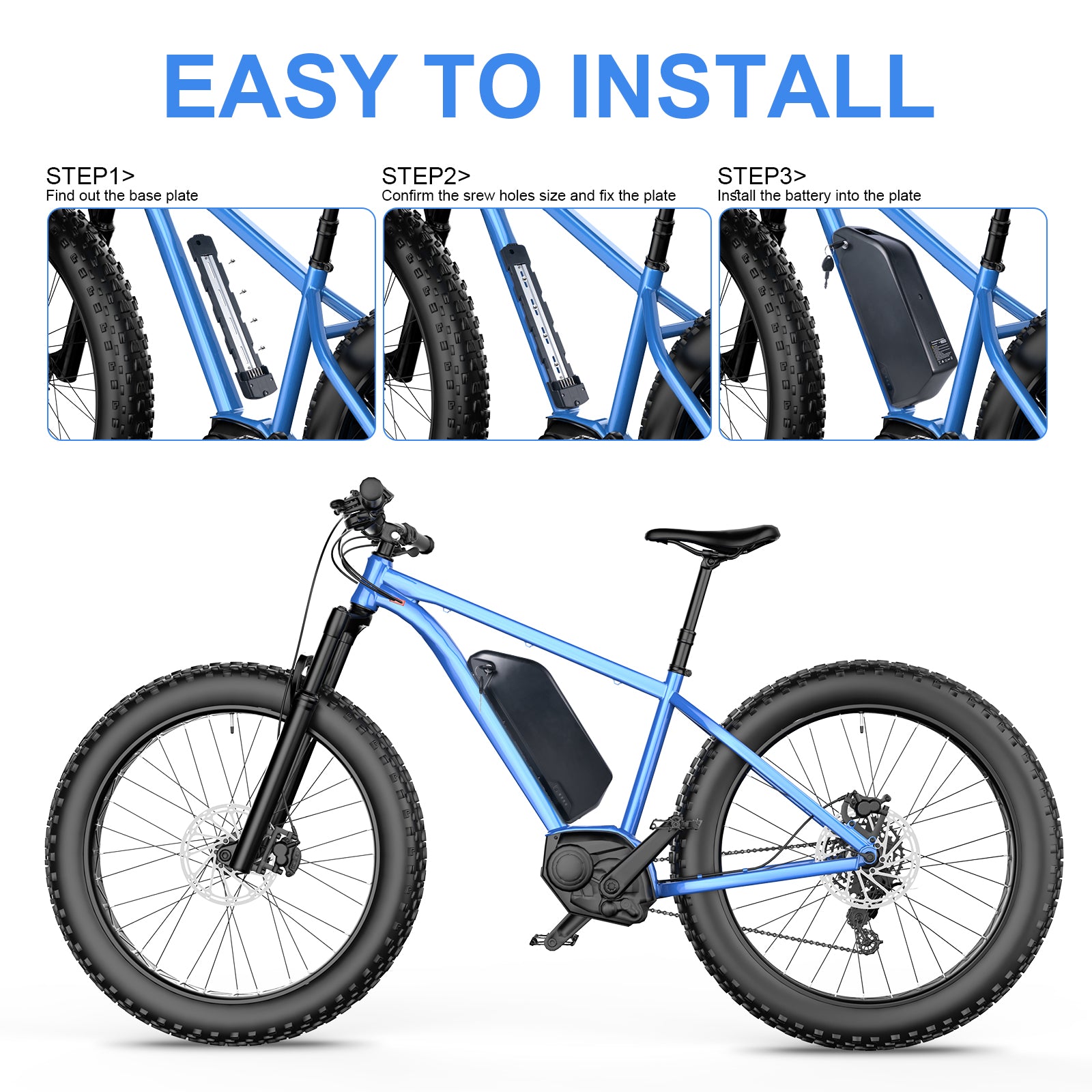

3.Please confirm that the dimensions of the battery are compatible with your frame before purchasing.
Guarantees
FAQs
Q: What type of this electric bike battery?
A: It is li ion battery, Chemical is Li(NiCoMn)O2.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -10 to 45°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
